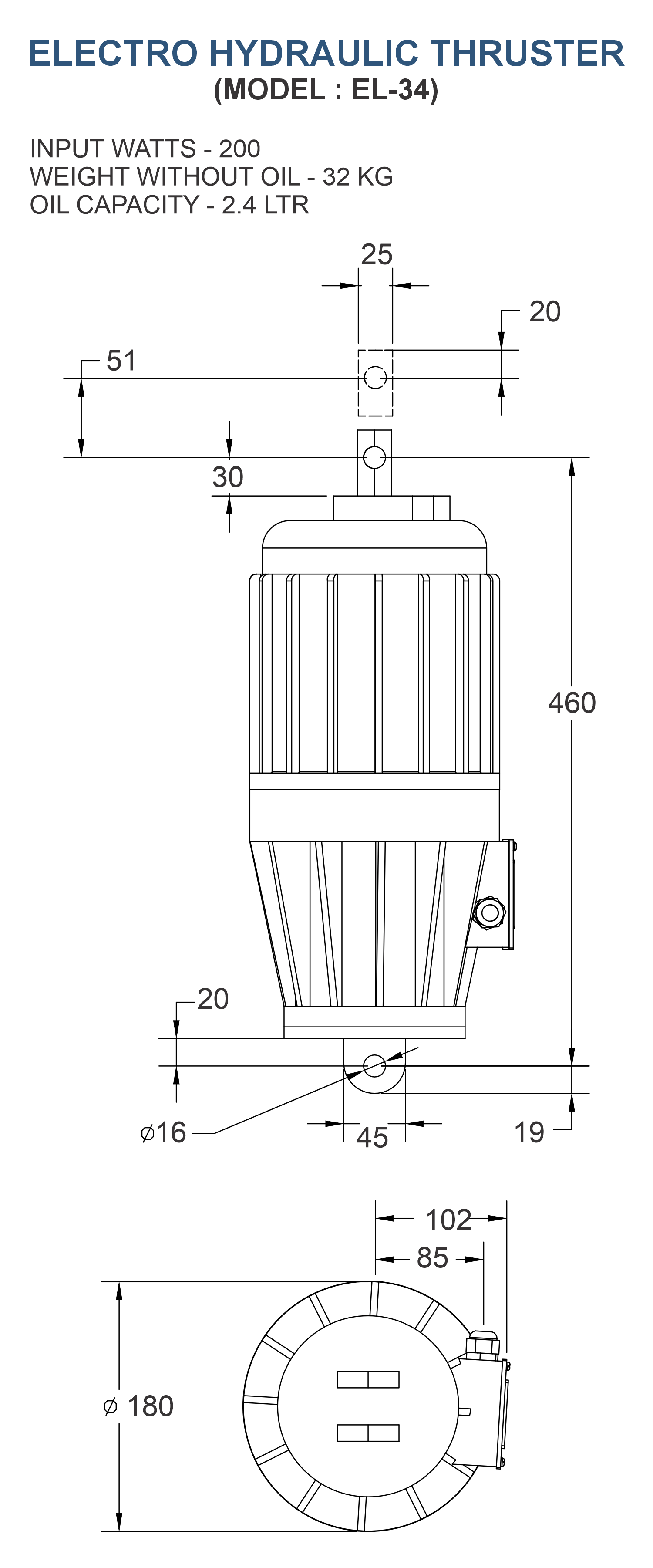

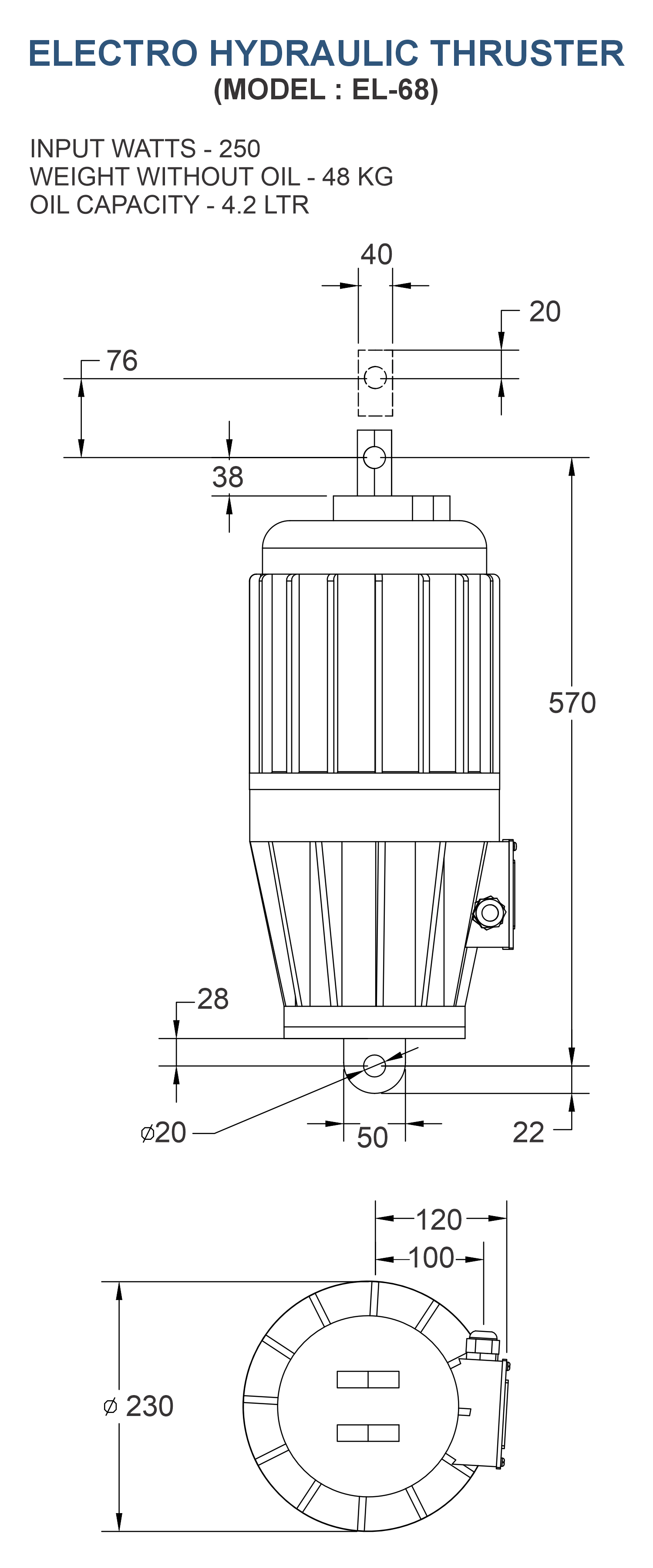

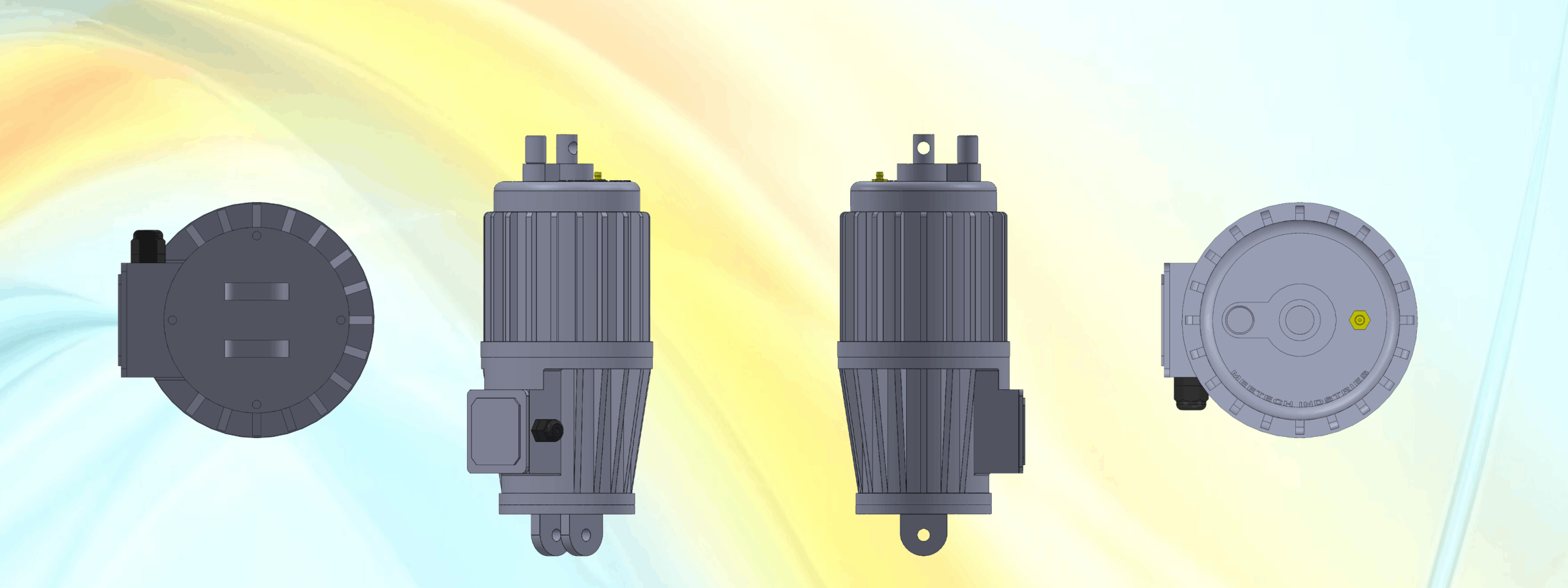

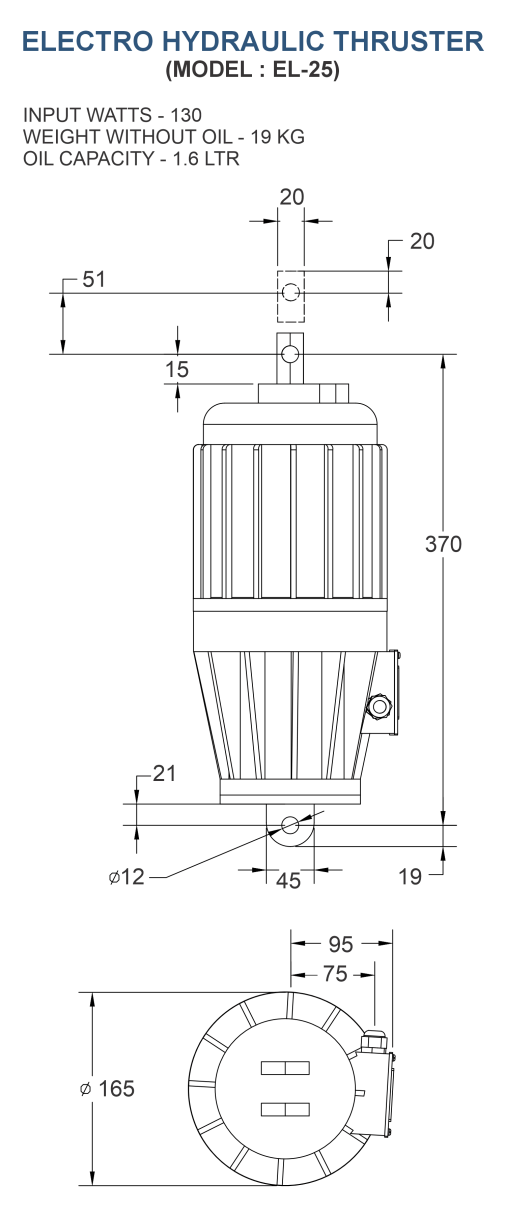

THRUSTER

Electro Hydraulic Thruster develops linear thrust (or force) required to operate the required mechanism with a smooth, straight line constant force. The thrusters are widely used to actuate thruster shoe brakes, commonly used in material handling machines.

APPLICATION:

Thruster brakes are specialized braking systems used in various industrial applications such as Cranes and Hoists, Winches, Conveyors, Gearboxes, Machinery, etc.

SPECIFICATION:

Suitable for 400/450V / 50 Hz / 3 phase AC supply. As per application requirement, can be supplied suitable for 60 Hz / 380 V.
Suitable for various ambient temperatures.
Protection class IP 54.
Heavy-duty cast-Iron body enclosure.
Reliable and maintenance free operation.
Easy mounting and dismounting.
Immune from external over loading.
Smooth jerk free perfectly linear motion.
Low noise, non electrical disturbance.
Transformer oil of grade as per BS : 148 is recommended for normal usage.
Clean the oil plug area before opening it for oil filling and open the overflow plug.
