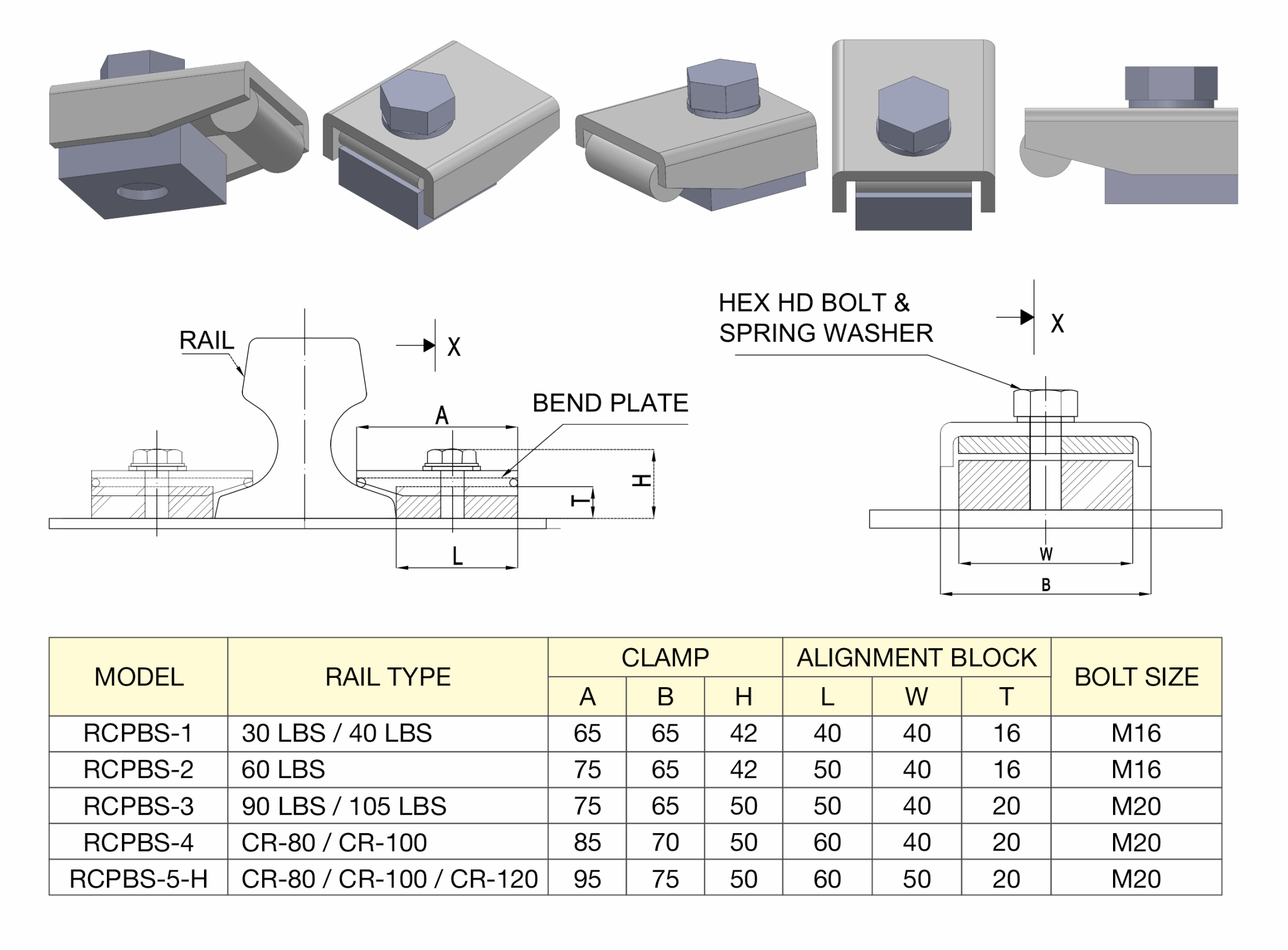

SINGLE BOLT BEND PLATE RAIL CLAMPS
MODEL - RCPBS

Single Bolt Bend Plate Rail Clamps are designed to secure rails using a bent or curved plate, which provides a strong grip while allowing for slight adjustments. These clamps are commonly used in industrial rail tracks, crane rails, and heavy machinery setups where stability and ease of installation.
Mobirise Website Builder

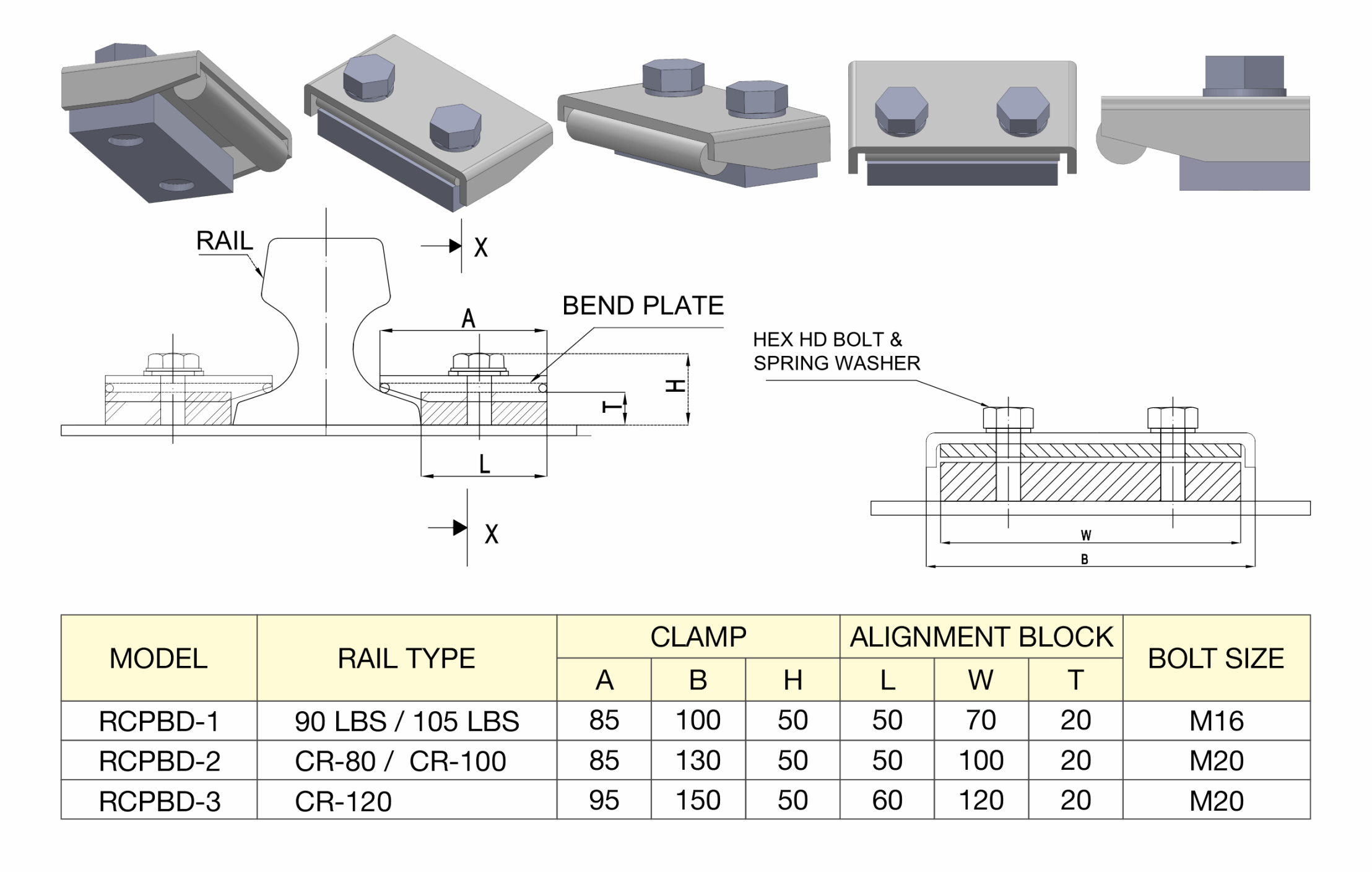

TWO BOLT BEND PLATE RAIL CLAMPS
MODEL - RCPBD

Two Bolt Bend Plate Rail Clamps are designed to provide a secure and stable fastening system for rail tracks, utilizing a bent plate structure for enhanced grip. With a dual-bolt configuration, these clamps offer increased holding strength and load distribution, making them ideal for heavy-duty applications.
Mobirise Website Builder

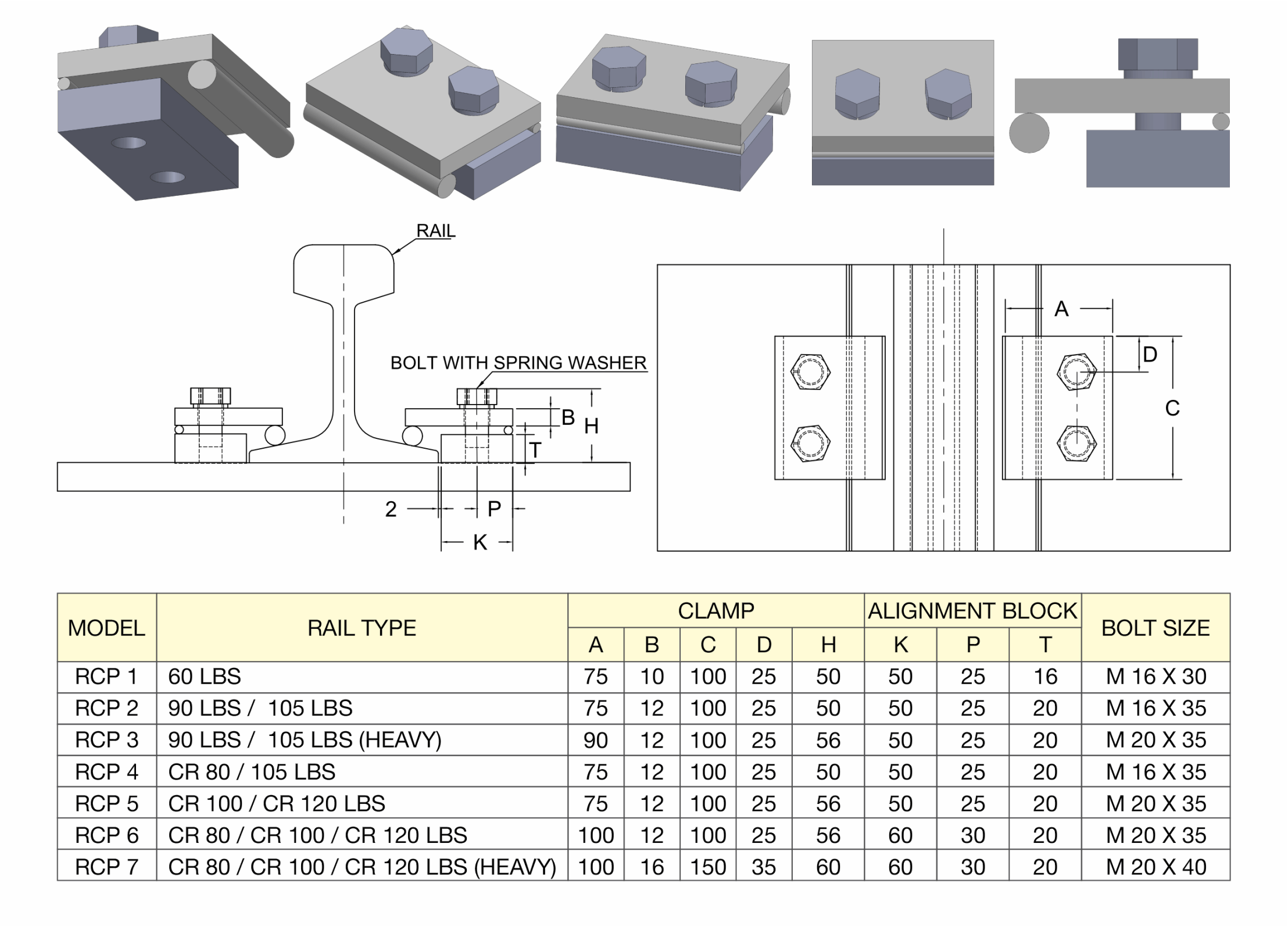

PLATE TYPE RAIL CLAMPS WITH TWO BOLTS
MODEL - RCP

Plate Type Rail Clamps with Two Bolts are a reliable solution for securing rails on track systems, offering robust support and stability. These clamps feature a plate-style design that provides a wide, even surface area for gripping the rail, along with dual bolts to ensure firm and secure fastening. The two-bolt configuration allows for better load distribution and enhanced resistance to rail movement, making them ideal for heavy-duty applications.
Mobirise Website Builder

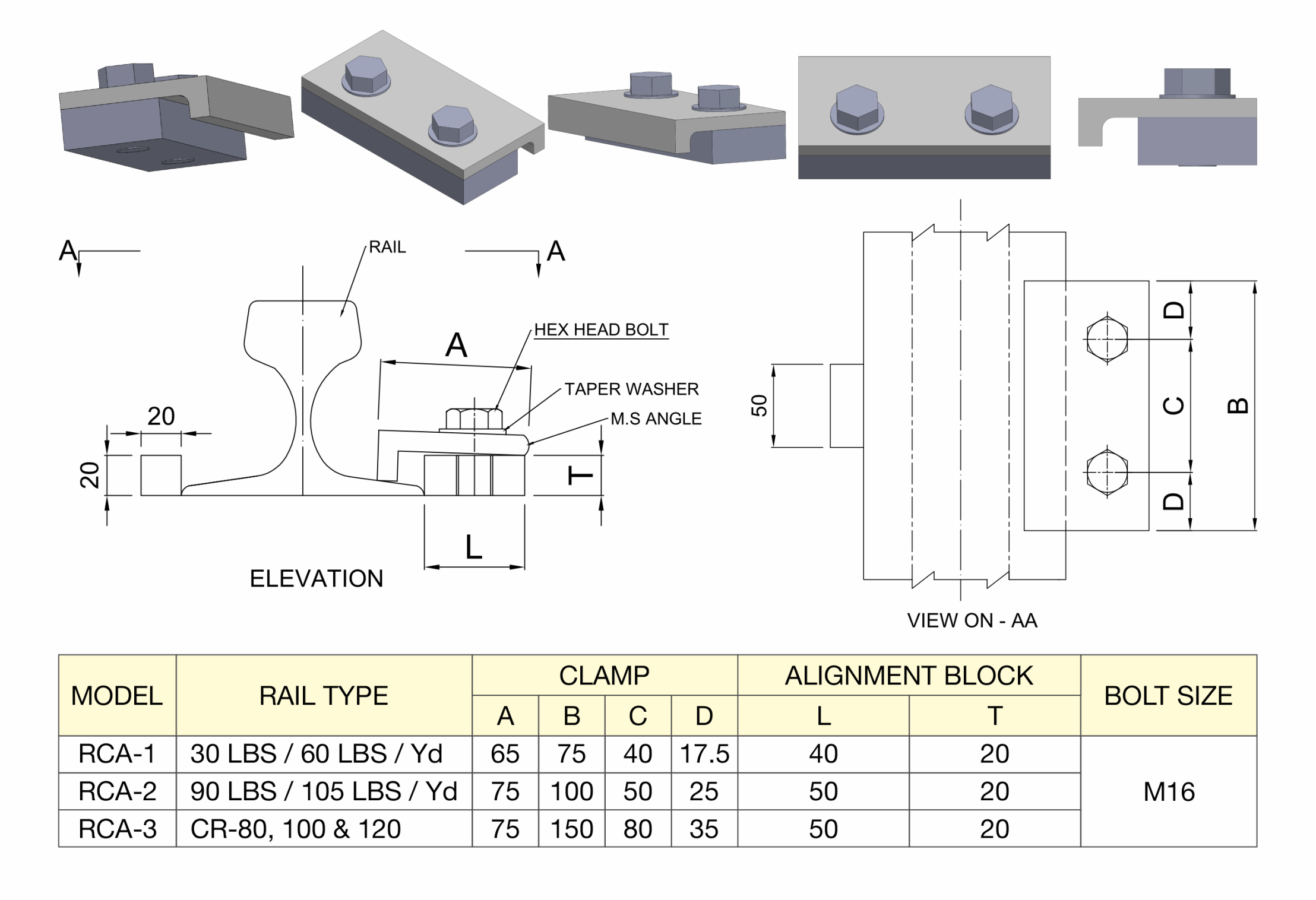

ANGLE TYPE RAIL CLAMPS WITH TWO BOLTS
MODEL - RCA

Angle Type Rail Clamps with Two Bolts are designed to secure rails by utilizing an angled bracket or plate that ensures a strong and stable hold. These clamps are particularly suited for applications requiring a firm grip on the rail while accounting for varying angles and forces. The dual-bolt system provides added strength, allowing for better load distribution and minimizing the potential for movement or shifting over time.
Mobirise Website Builder

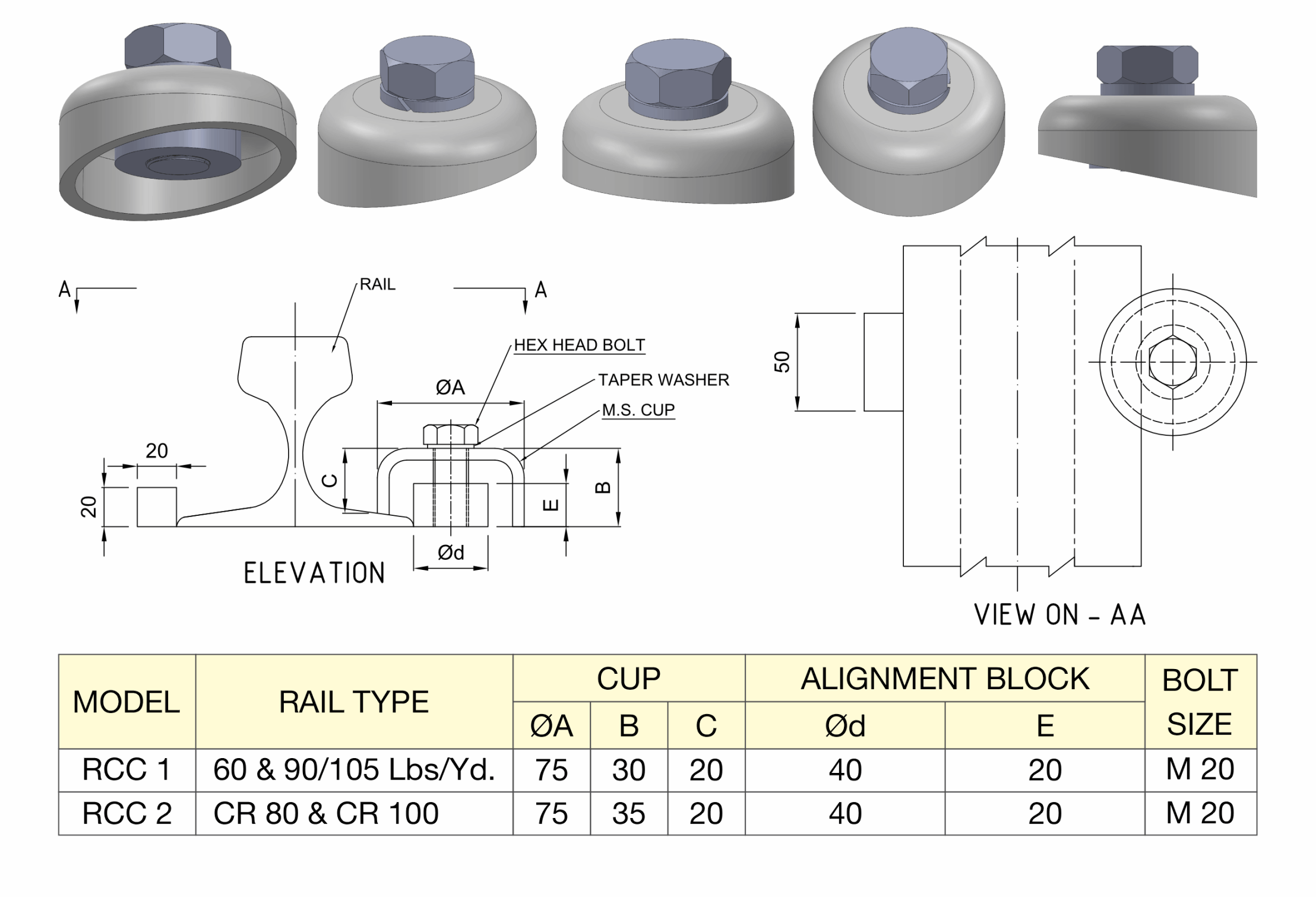

CUP-SHAPED RAIL CLAMPS
MODEL - RCC

Cup-shaped rail clamps, or "cup-type" clamps, feature a concave design that fits around the base of the rail, providing a secure and stable hold. This shape ensures a tight grip, preventing lateral movement and maintaining track stability under heavy loads and vibrations. These clamps are commonly used in both railway and industrial applications, especially for fixed track installations.
Mobirise Website Builder

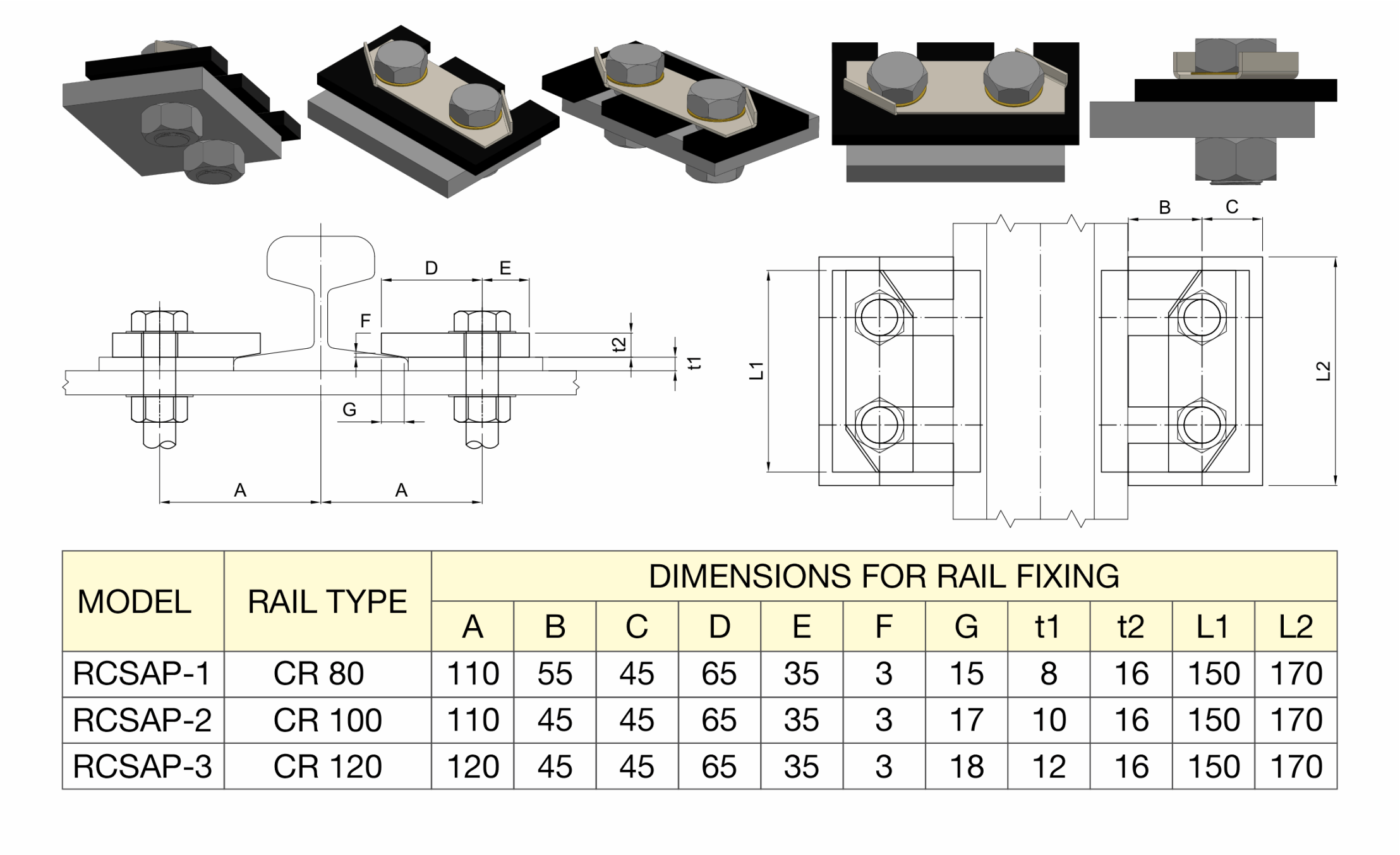

SLOT TYPE ADJUSTABLE RAIL CLAMPS
MODEL - RCSAP

Slot Type Adjustable Rail Clamps feature a slot-based design that allows for easy rail position adjustments, ensuring precise alignment and secure clamping. This adjustability makes them ideal for applications where fine-tuning of track alignment is needed or for accommodating wear and environmental changes over time.
