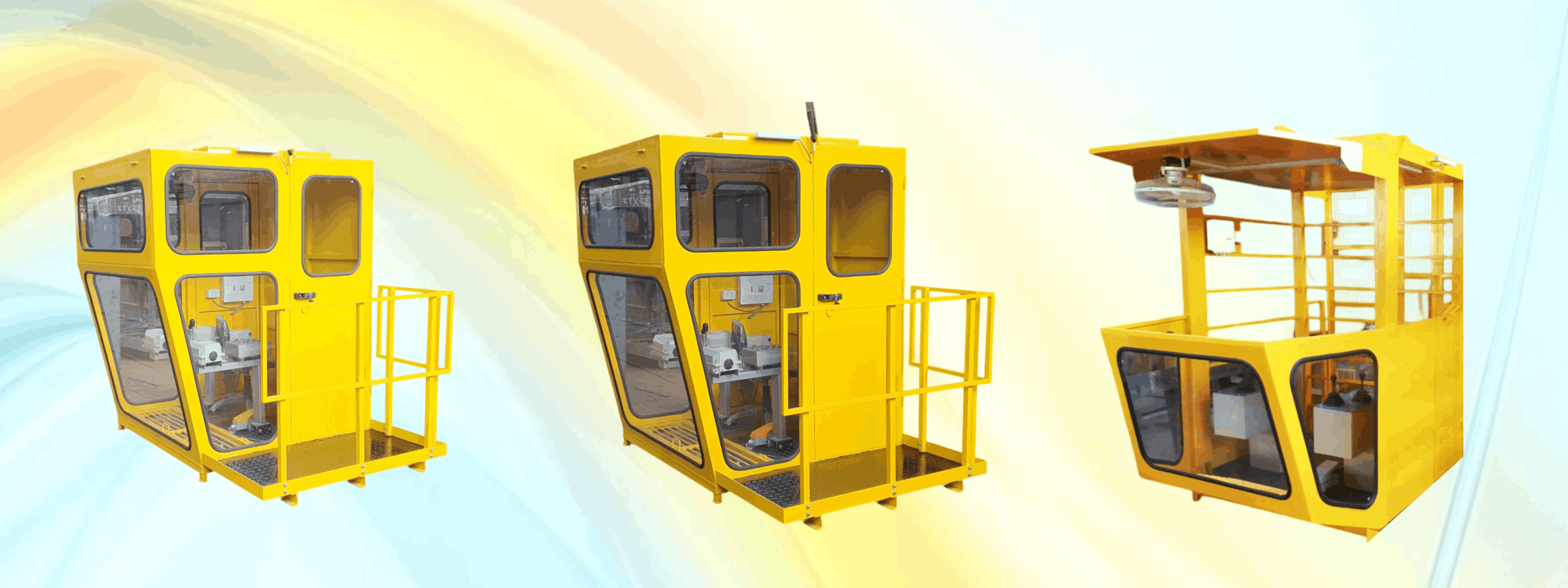

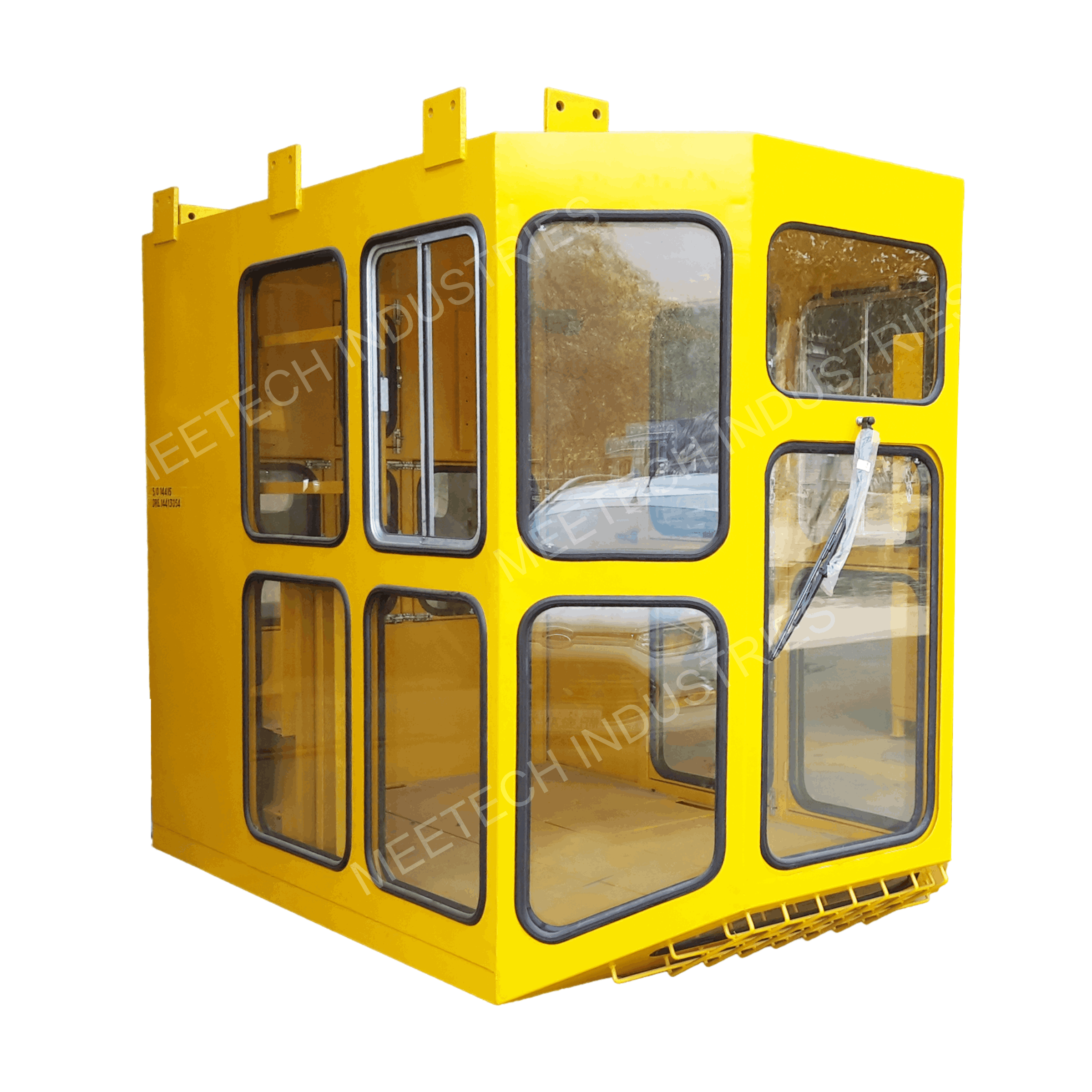

OPERATOR CABINS

ADVANTAGES

Cabins in overhead cranes provide operator with a bird’s-eye view of the worksite, significantly improving both personnel and machine safety. This elevated perspective allows the operator to better assess obstacles on the shop floor, offering greater control and visibility compared to operating the crane from the ground using a radio remote control or pendant.

APPLICATIONS

EOT Cranes | Tower Cranes | Mobile Cranes
Excavators | Ship Unloaders

SPECIAL FEATURES

  • All the structural steels are as per IS-2062 grade.
  • Fabrication Process is carried as per approved WPS and by qualified welders.
  • Operators entry to Cabin can be from Left / Right / Back / Top side as per requirement.
  • For AC cabins, we use tightly sealed, double-glazed safety glass with toughened clear panels. (6mm clear glass + 12 mm air gap (nitrogen gas) + 6 mm clear glass).
  • Blast-resistant glass is available as an option.
  • Dual-wall construction with glass wool insulation for enhanced heat resistance in AC cabins.
  • Air conditioner unit / cabin fan / exhaust fan / indicating light / gong bell are optional.
  • The air conditioning system in the cabin is available with options including Customized Industrial AC, Commercial Split AC, or Window AC.
  • For non AC Open and Closed Cabin 6 mm Safety Clear Toughened Glass.

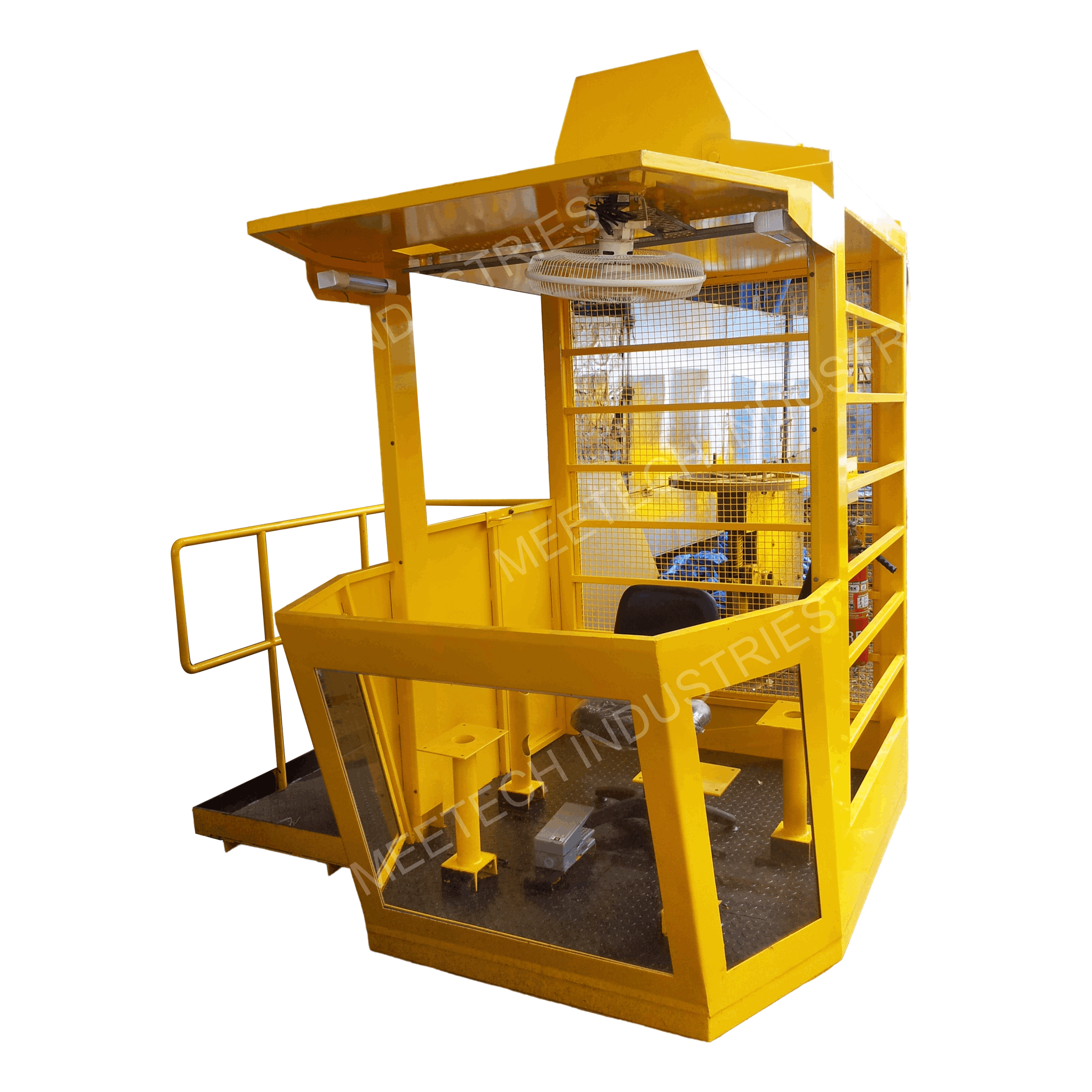

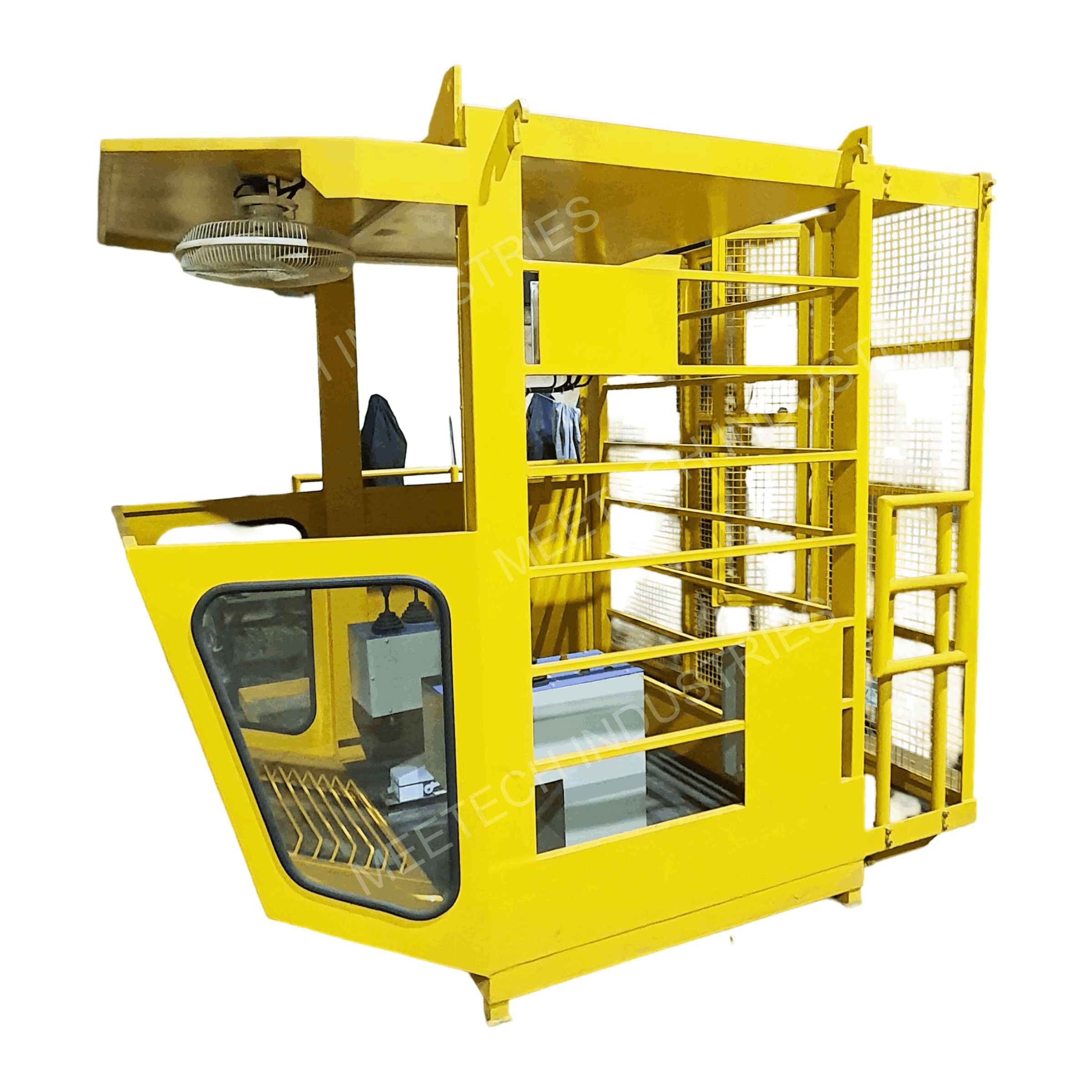

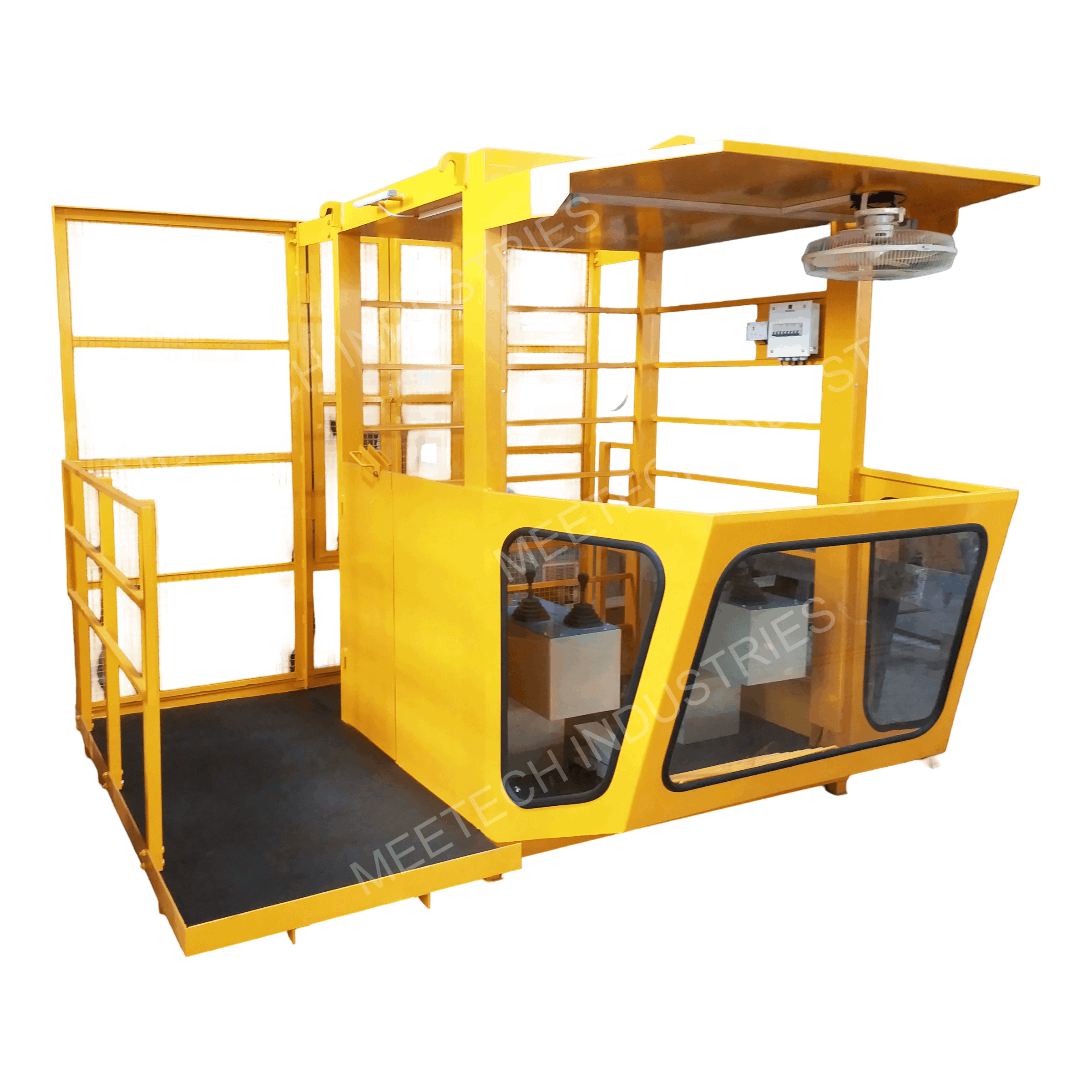

  • For Open Cabin with glass / without glass, with wire mesh / without wire mesh. (Options).
  • 180 degrees aerial view.
  • Conduit-based wiring is supplied.
  • Silicon wipers for ease of cleaning of front glass

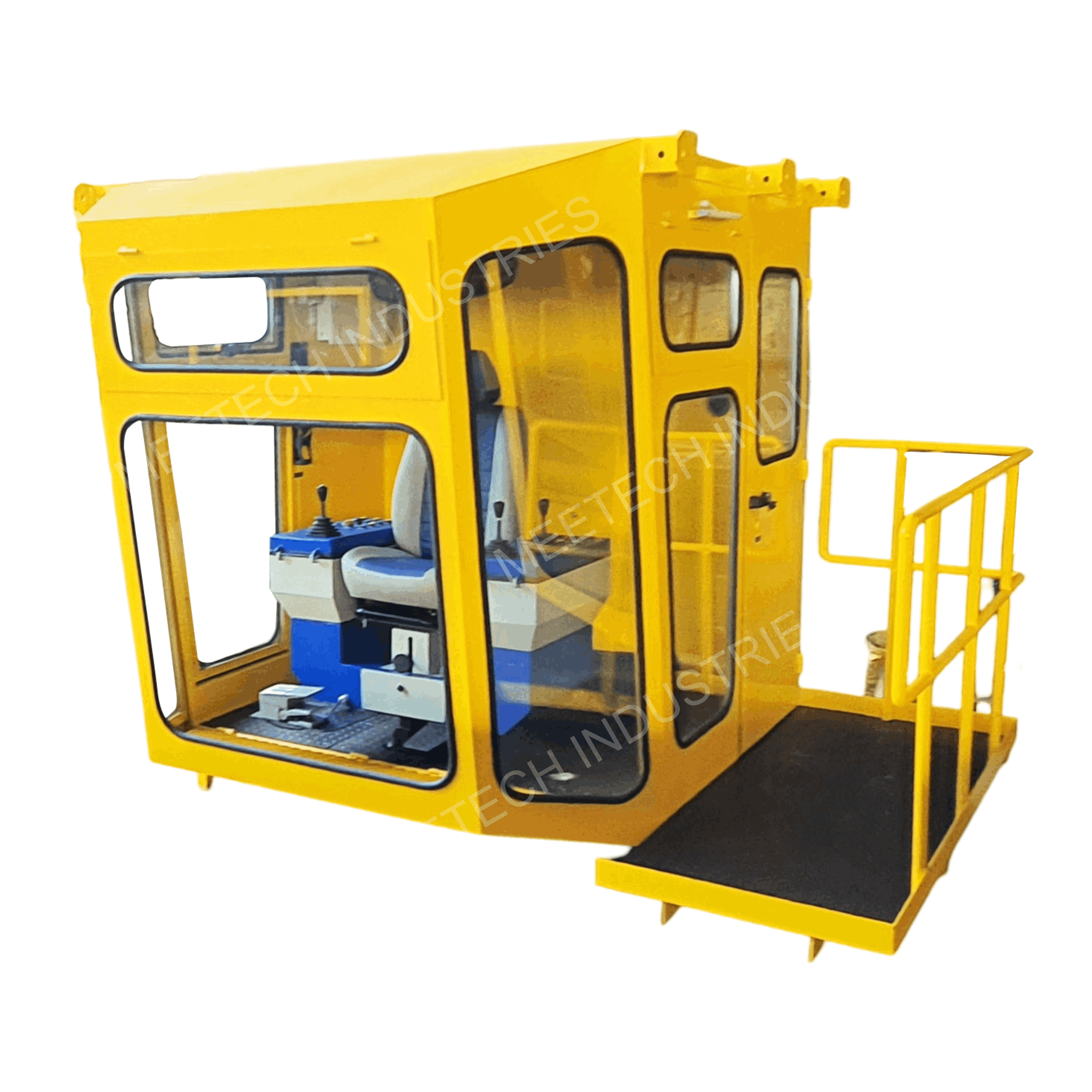

  • Sturdy hand railing and maintenance platform.
  • For crane operation joystick type master controller with stand / armchair master controller / sheet metal master control / aluminium master control / combo box can be provided as per design.
  • Arms chairs (if applicable) are ergonomically designed with foot switch and swivelling motion.
  • Junction box with plug sockets.
  • Co2 Fire extinguisher for fire protection with portable stand.
  • LED light for internal visibility.
  • Light Distribution Board with MCB as per requirement.
  • Document / mobile / helmet / bottle holder.
  • Mobile charging socket.
  • Insulating carpet.
  • Sun Vision / Tinted Glass
  • Heavy Duty Door Lock
  • Hydraulic Operated Windows
