CABIN CONTROLLERS
CABIN CONTROLLERS
Master Controllers are primarily utilized for the remote operation of controlling equipment such as EOT Cranes and Rolling Mills drives. These controllers are housed in a dustproof enclosure with an IP-54 protection rating. The operation of the Master Controller extends to 6 notches in either direction, accommodating a maximum of 24 contacts according to the required sequence, and includes a spring return mechanism and a Dead Man's handle arrangement. The Master Controllers are compact, offering up to 4-0-4 steps, making them suitable for applications such as Hoist-Grab and CT–LT. Maximum contacts 16 per motion with spring return arrangement.
Application:
The Rotary Geared Limit Switch is ideal for use in control circuits of cranes, hoists, winches, and other drive mechanisms, where the bi-directional travel of the mechanism needs to be restricted within specific, predefined positions. These switches are suitable for direct coupling with motors, reduction gear shafts, rope drums, and similar components.

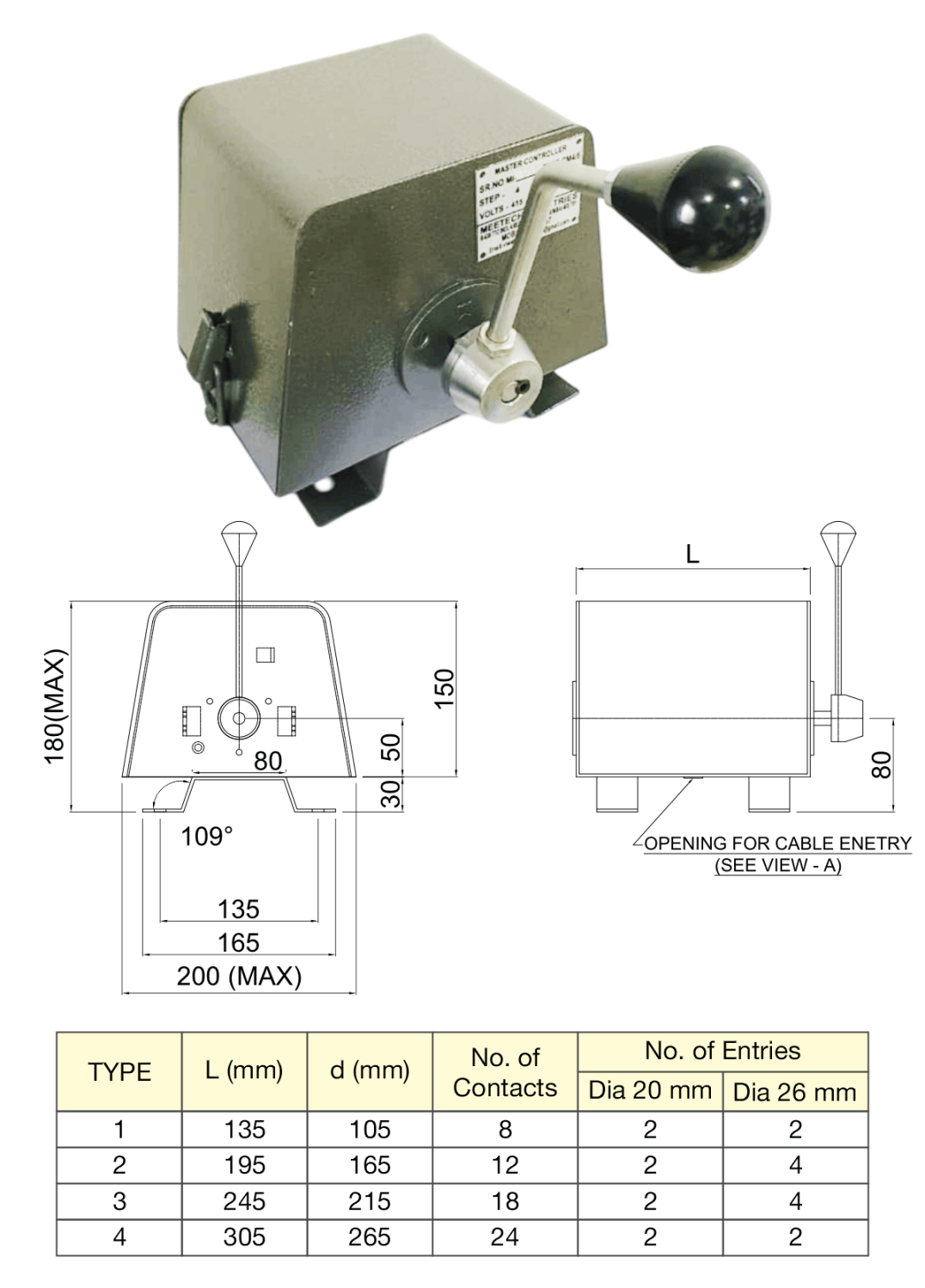

MODEL - AL/MC

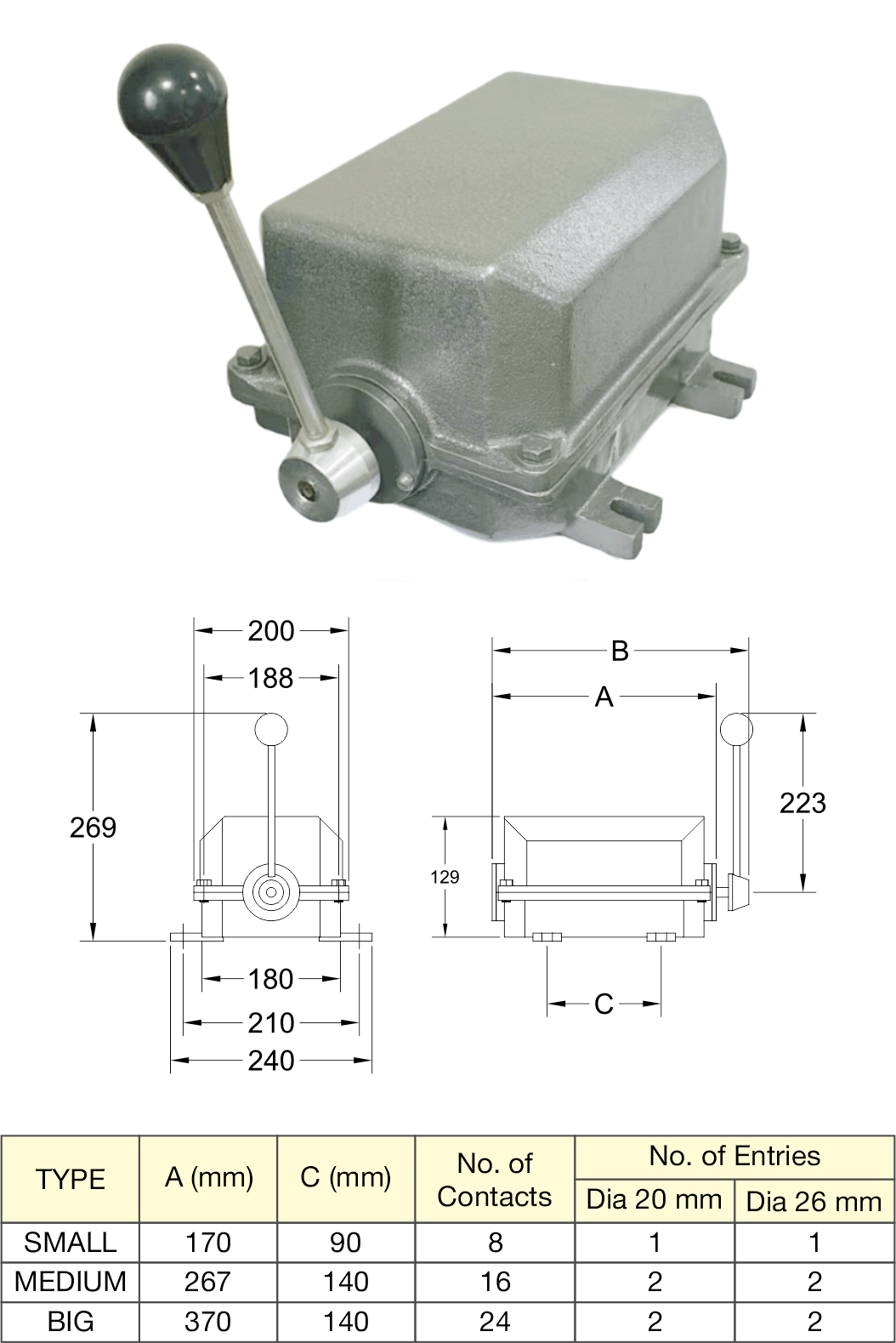

MODEL - MS/MC

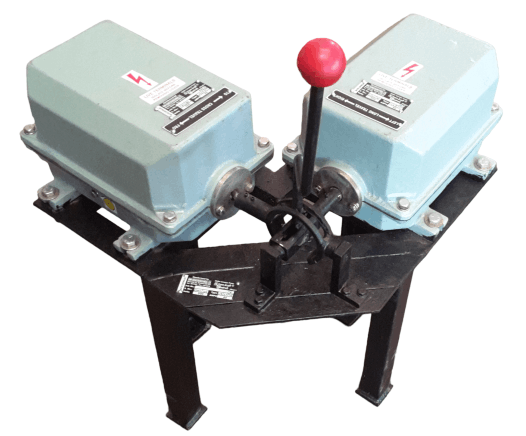

A Twin Master Controller with a universal handle enables a crane operator to control both bridge and trolley motions simultaneously, enhancing spotting accuracy and load movement speed. The joystick handle can be moved into any quadrant and position, and these universal controllers are also used for hoist/grab motions. Equipped with a universal joint, the Master Controllers allow to achieve the desired motion for individual or combined operations.

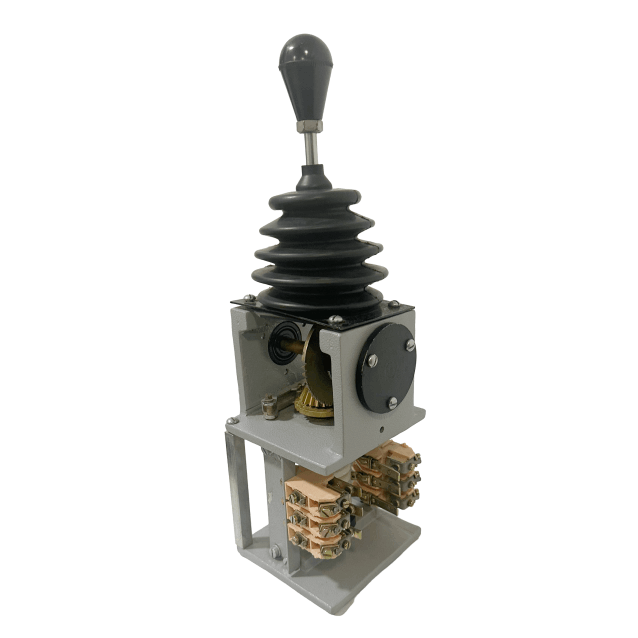

An overhead crane joystick controller is a device designed to manage the movement of an overhead crane. It generally features a joystick or lever that allows the operator to move the crane in various directions and adjust its speed. In addition to the joystick, the controller includes buttons and switches to control other functions, such as the load or hoist. Some models also include displays and feedback systems, offering real-time information about the crane's position and operational parameters.
