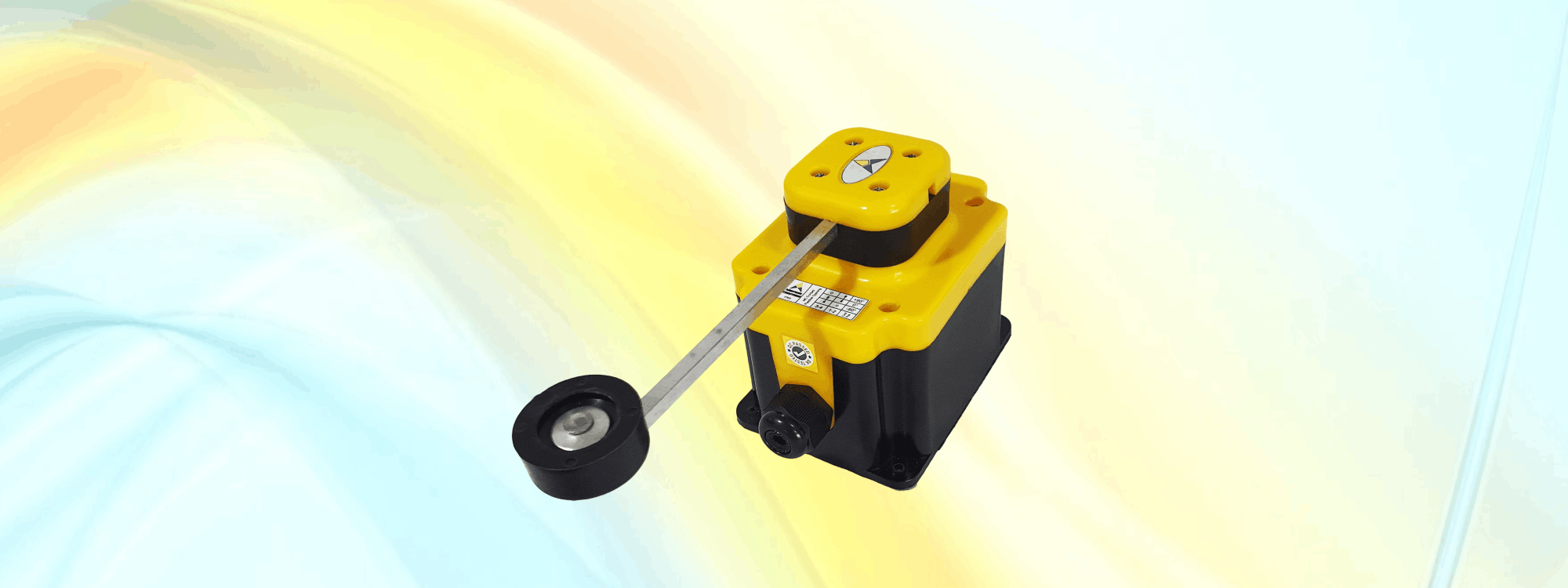

LEVER TYPE LIMIT SWITCHES

MODEL - LTLS

The Lever Type Limit Switch is designed for heavy-duty applications such as E.O.T. cranes and wagon shunting systems. It serves to prevent over-travel or over-traverse in both power and control circuits, with a capacity of up to 500 volts AC, 50 Hz, and a current rating of 20 amps.

PRODUCT FEATURES
Body Material                   Unbreakable ABS/Nylon
Degree of Protection   IP-54
Mounting Position         Foot Mounted / Horizontal
Rated Voltage                  500 V AC
Thermal Test Current   20 Amp
Number of Contacts     2
Mode of Operation         2 way self resetting
