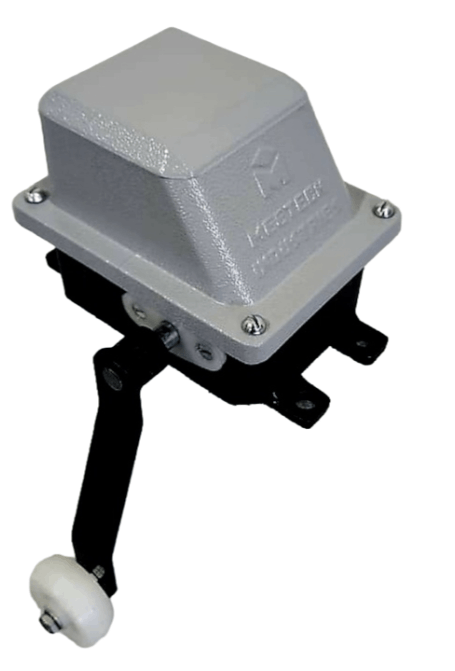

LEVER OPERATED LIMIT SWITCHES

MODEL - LLS

A lever-type limit switch operates by managing the changeover contacts of a motor in moving equipment. When a cam, moving along with the load, engages the switch's lever, it rotates the cam on a square shaft. This movement triggers the normally open (NO) and normally closed (NC) contact elements.

Application:
Lever Limit Switches are used for heavy duty EOT cranes, wagon shunting devices, elevators, tours & travel Mechanism etc. to prevent over travel or traverse. Handle Position up/down and it can be Changed in steps of 90º at site.
