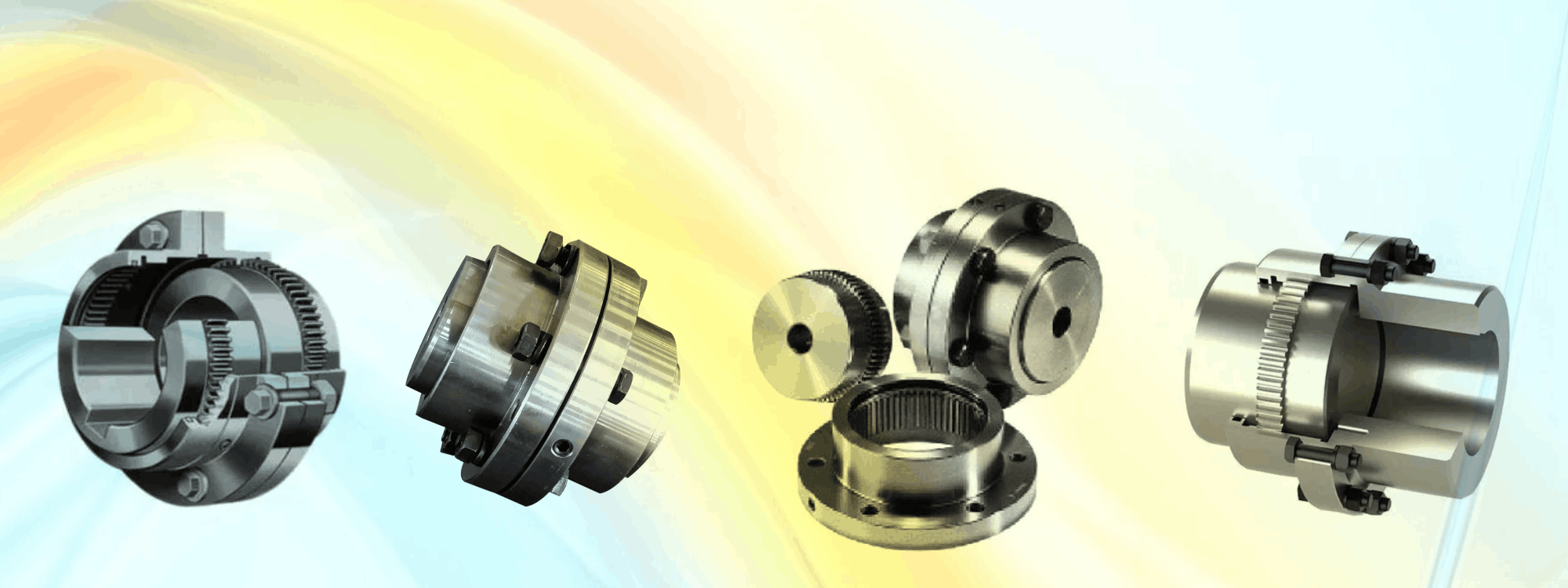

GEARED COUPLINGS

EOT crane gear couplings are critical mechanical components used in Electric Overhead Travelling (EOT) cranes to transmit torque between the motor and the gearbox or between the gearbox and the drum while accommodating slight misalignments.

FEATURES

  • High torque capacity
  • Compact design
  • Durable materials (usually high-strength alloy steel)
  • Lubrication required for longevity and performance
  • Can be flexible (with backlash) or rigid, depending on the application

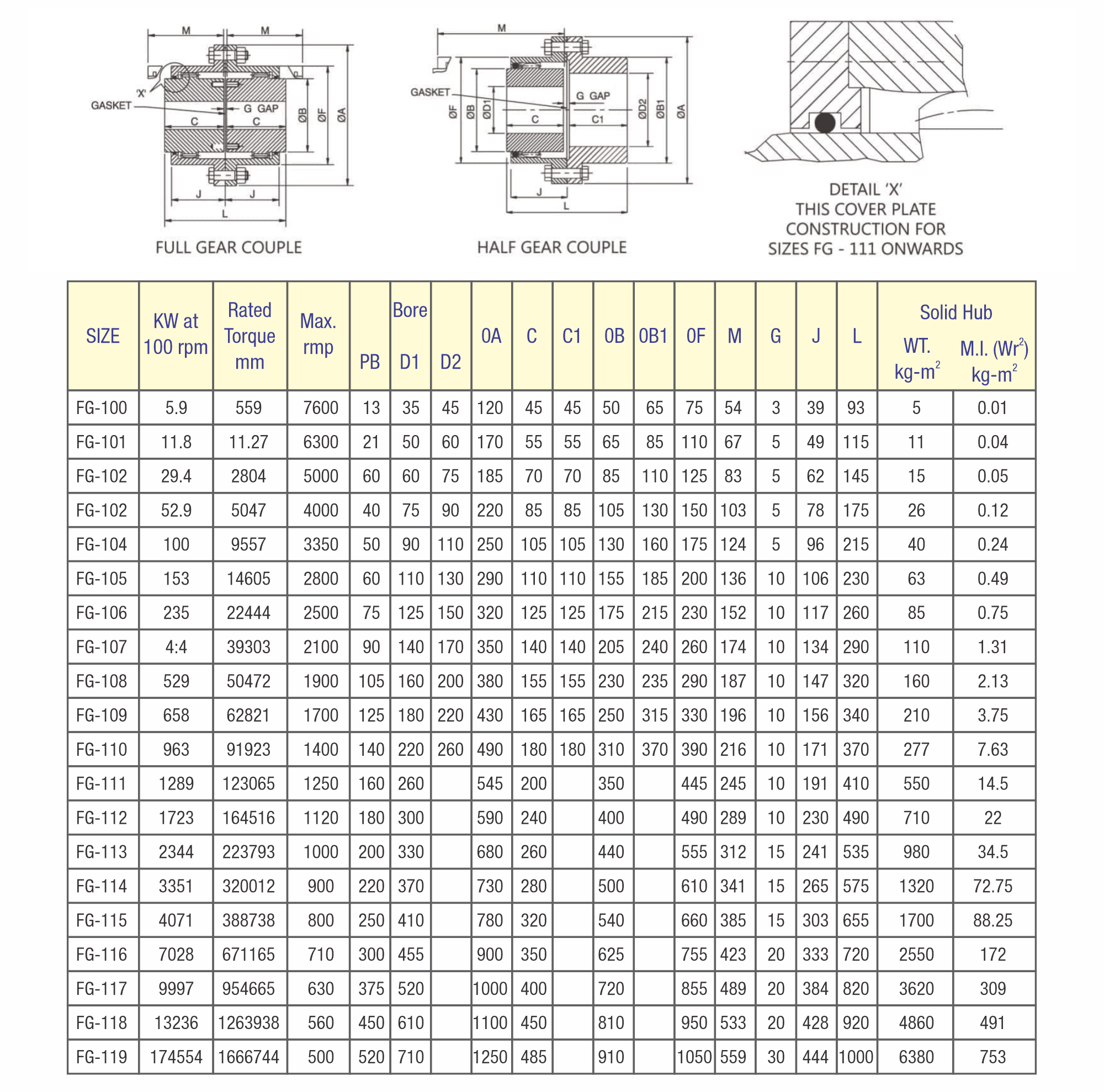

Types Used in EOT Cranes

  • Full Gear Coupling: Both ends have internal gear teeth and are used for balanced torque sharing.
  • Half Gear Coupling: One end is flanged, the other has internal gears — for specific space or design needs.
