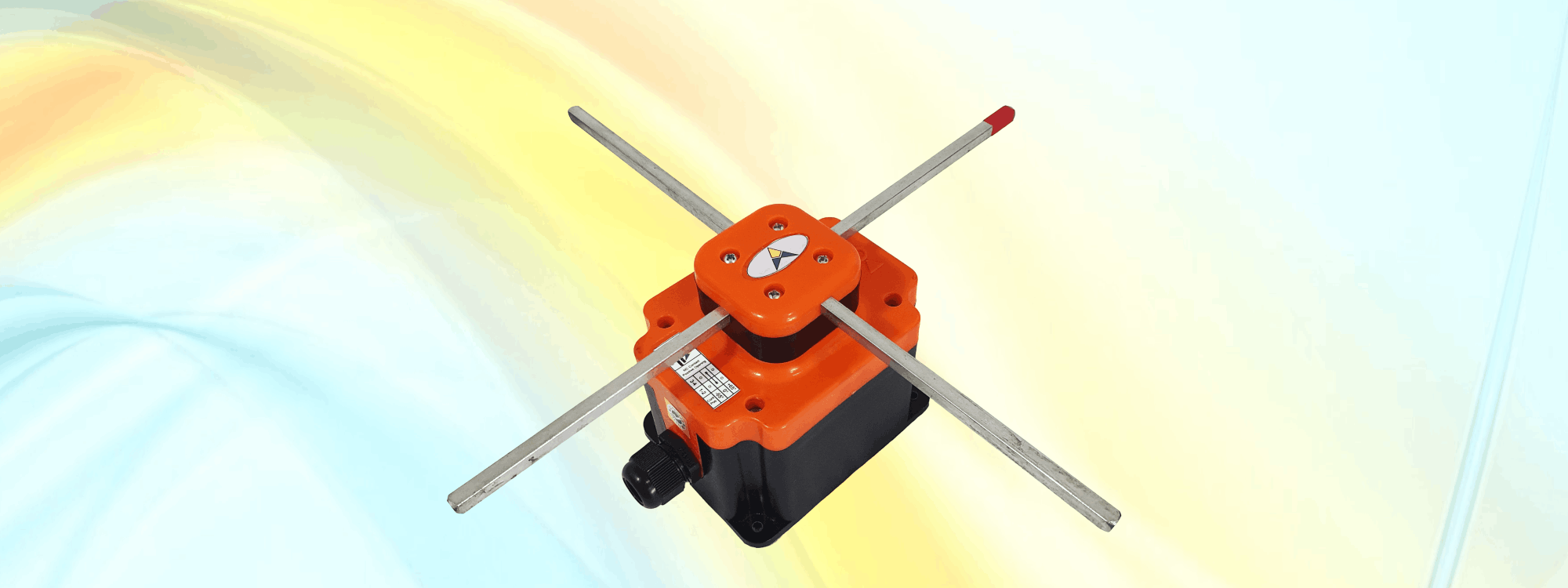

CROSS BAR TYPE LIMIT SWITCHES

MODEL - CBLS

The Cross Bar Limit Switch is a 4-position control mechanism that operates with 90-degree rotations, suitable for both single and two-speed motor control. It is fitted with rotary gears, ensuring smooth operation at speeds ranging from 12 to 200 revolutions per minute. The outer housing is crafted from premium-grade self-extinguishing thermoplastic with double insulation and an ingress protection rating of IP 54, safeguarding it from dust, oil, and other non-corrosive substances. The Cross Bar Limit Switch is designed to perform efficiently within a temperature range of -25°C to 55°C.

PRODUCT FEATURES
Body Material Durable   ABS/Nylon
Protection Rating            IP 54
Mounting Options            Foot-mounted / Horizontal
Rated Voltage                    500 V AC
Thermal Test Current    20 Amps
